MMO titanium anode is a high-performance electrochemical electrode widely used in water treatment, electrolysis, and cathodic protection systems. It features a titanium substrate coated with mixed metal oxides, offering excellent corrosion resistance, long service life, and stable performance under high current density conditions.

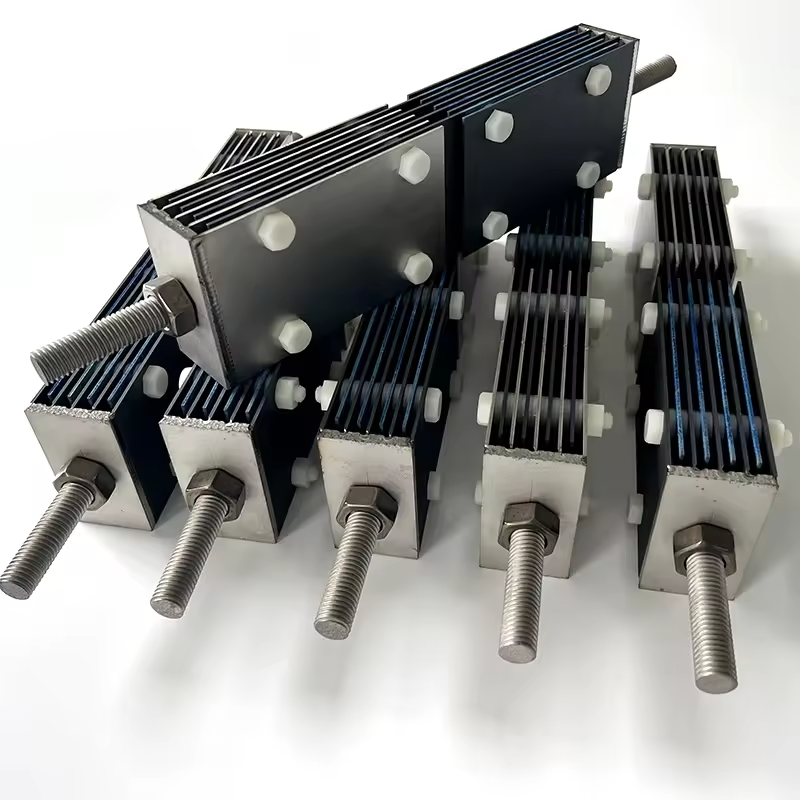

🖼️ product image
🟩 What is MMO Titanium Anode?
An MMO titanium anode, also known as a Mixed Metal Oxide titanium anode, is an advanced electrochemical electrode made by coating a titanium substrate with a layer of noble metal oxides such as ruthenium (Ru), iridium (Ir), or tantalum (Ta).
This type of anode is also widely referred to as:
- DSA (Dimensionally Stable Anode)
- Insoluble titanium anode
- MMO coated titanium electrode
Unlike traditional graphite or lead anodes, the MMO titanium anode does not dissolve during electrolysis. Instead, it maintains a stable structure and delivers consistent electrochemical performance over a long service life.
🟩 Structure & Materials of MMO Titanium Anode
The MMO titanium anode consists of two main components:
1️⃣ Titanium Substrate
- Material: Titanium Grade 1 or Grade 2
- Forms: plate, mesh, rod, wire, or tube
- Function: provides mechanical strength and corrosion resistance
2️⃣ MMO Coating
- Composition: RuO₂, IrO₂, Ta₂O₅, Pt (depending on application)
- Function: provides catalytic activity and conductivity

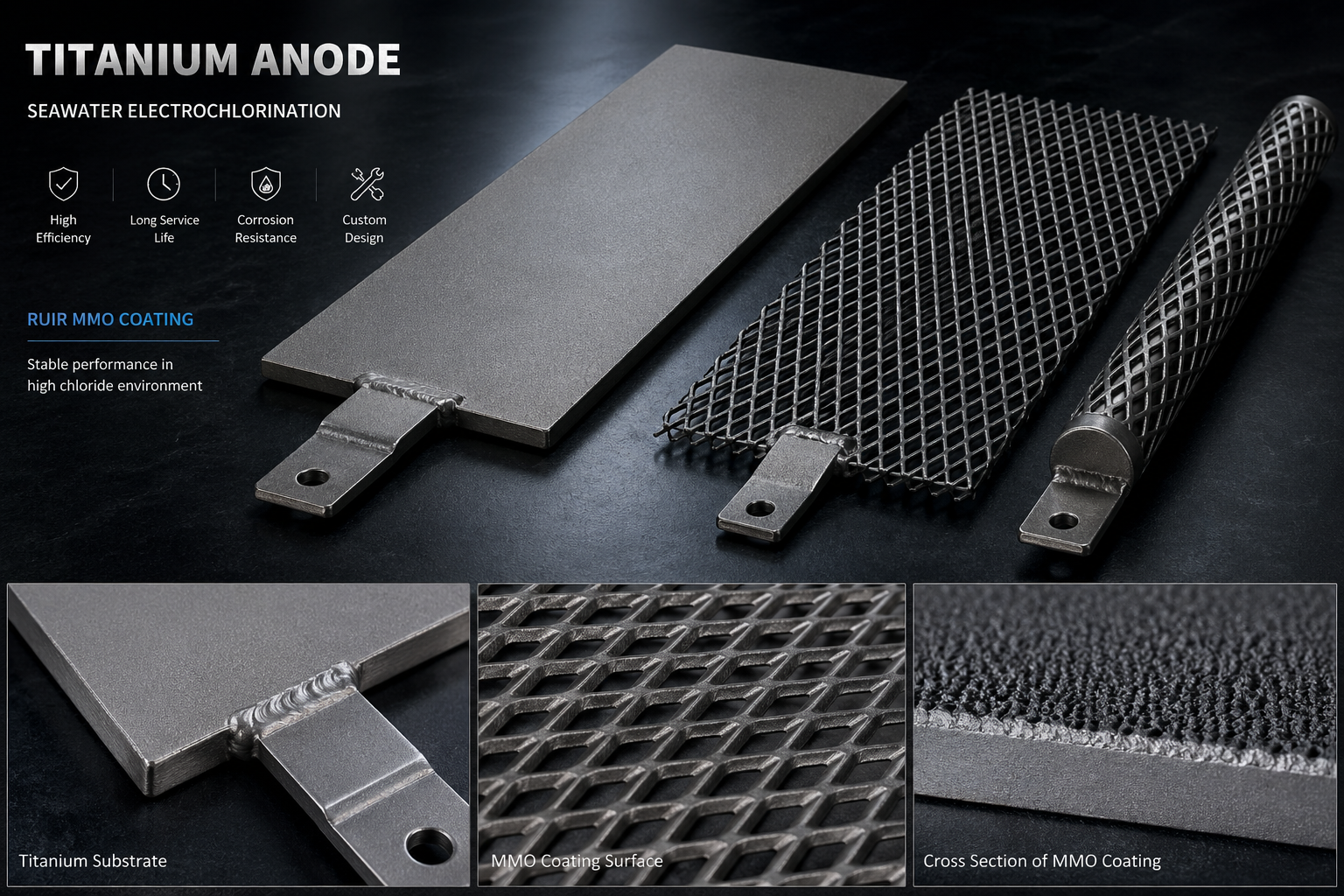

🖼️ Structural Diagram
🟩 How Does MMO Titanium Anode Work?
In an electrochemical system, the MMO titanium anode serves as the site for oxidation reactions.
When electric current passes through the electrolyte:
- Oxidation reactions occur at the anode surface
- Depending on the electrolyte, oxygen or chlorine gas is generated
- The MMO coating accelerates electrochemical reactions while resisting corrosion
Because of its high electrocatalytic activity, the MMO titanium anode operates at a lower overpotential compared to traditional materials, resulting in:
- Reduced energy consumption
- Improved system efficiency
- Stable long-term performance
🟩 Advantages of MMO Titanium Anode
MMO titanium anodes offer significant advantages over conventional anodes such as graphite and lead.
✅ Key Advantages:
- Long Service Life
Typically 5–10 years depending on application - Low Energy Consumption
Reduces operating voltage by 10–20% - Excellent Corrosion Resistance
Suitable for harsh chemical environments - Dimensionally Stable
No deformation during electrolysis - High Current Density Capability
Performs reliably under industrial conditions - Environmentally Friendly
No heavy metal contamination
🟩 MMO Titanium Anode vs Traditional Anodes
| Feature | MMO Titanium Anode | Graphite Anode | Lead Anode |
|---|---|---|---|
| Lifespan | 5–10 years | 6–12 months | 1–2 years |
| Stability | Excellent | Poor | Medium |
| Energy Consumption | Low | High | High |
| Corrosion Resistance | Excellent | Poor | Medium |
| Environmental Impact | Clean | Dust pollution | Lead contamination |
👉 Conclusion: MMO titanium anode is the most advanced and cost-effective solution in modern electrochemical systems.
🟩 Applications of MMO Titanium Anode
MMO titanium anodes are widely used in various industries due to their versatility and durability.

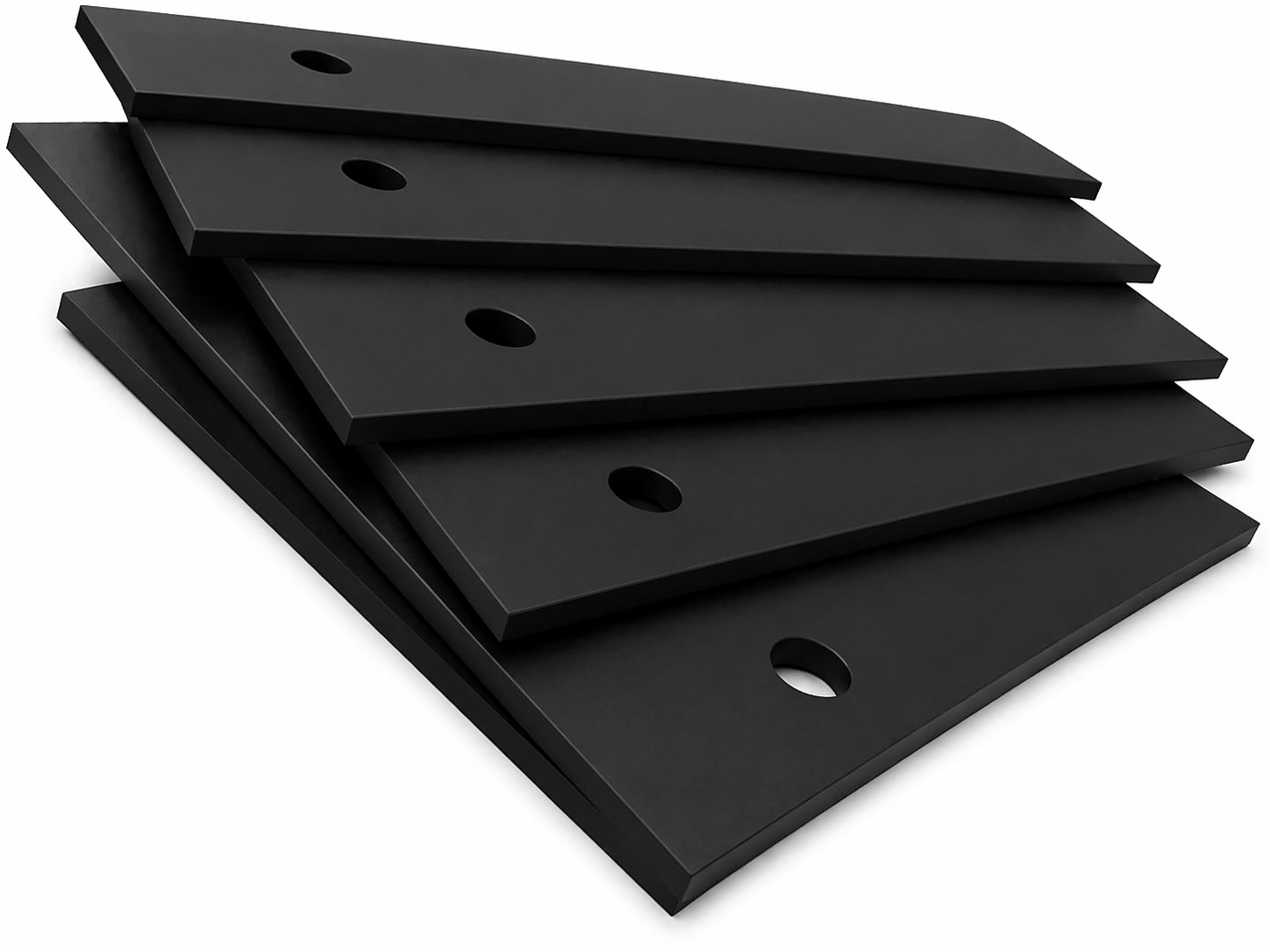

🖼️ Application scenario
🔹 Major Applications:
- Water treatment (sewage, wastewater)
- Electroplating industry
- Cathodic protection systems (ICCP)
- Seawater electrolysis
- Sodium hypochlorite generation
- Swimming pool disinfection
- Metal recovery processes
🟩 Technical Data (Example)
| Parameter | Value |
|---|---|
| Substrate Material | Titanium Grade 1 / Grade 2 |
| Coating Type | Ru-Ir / Ir-Ta / Pt |
| Coating Loading | 5–20 g/m² |
| Current Density | 100–2000 A/m² |
| Service Life | 5–10 years |
| Operating Voltage | Lower than graphite |
🟩 FAQ (Frequently Asked Questions)
❓ What does MMO stand for?
MMO stands for Mixed Metal Oxide, referring to the coating applied to the titanium substrate.
❓ Is MMO titanium anode consumable?
No. It is considered an insoluble anode, meaning it does not significantly dissolve during operation.
❓ How long does an MMO titanium anode last?
Typically between 5 to 10 years depending on operating conditions such as current density and electrolyte composition.
❓ Can MMO titanium anodes be customized?
Yes. They can be manufactured in various shapes and sizes including plates, meshes, rods, and tubular forms.
❓ What coating should I choose?
It depends on your application:
- Ru-Ir → chlorine evolution
- Ir-Ta → oxygen evolution
- Pt → special applications
