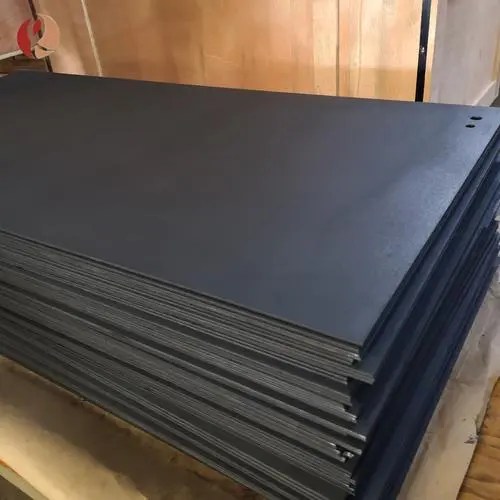

Product Image
Product Overview
IrTa Titanium Anode Plate is a high-performance mixed metal oxide (MMO) titanium electrode manufactured using high-purity titanium plate substrate coated with iridium oxide and tantalum oxide. The electrode is specifically designed for demanding oxygen evolution and industrial electrolysis applications requiring excellent catalytic activity, high corrosion resistance, and long operational lifetime.
Compared with traditional electrode materials such as graphite, stainless steel, and lead alloy electrodes, IrTa Titanium Anode Plate offers superior electrochemical performance and dimensional stability under harsh operating conditions.
The iridium-tantalum mixed metal oxide coating provides excellent catalytic activity for oxygen evolution reactions (OER). Iridium oxide enhances electrochemical efficiency and lowers oxygen evolution overpotential, while tantalum oxide significantly improves coating durability and corrosion resistance.
Due to its stable titanium substrate and advanced MMO coating system, IrTa Titanium Anode Plate is widely used in PEM water electrolysis, electrochemical oxidation, industrial wastewater treatment, electrochemical disinfection, and advanced industrial electrolysis systems.
The solid plate structure provides excellent mechanical strength and stable electrical conductivity, making it highly suitable for industrial electrolysis equipment operating under high current density and acidic environments.
With increasing demand for green hydrogen production and advanced electrochemical technologies, IrTa Titanium Anode Plate has become one of the preferred electrode materials for modern industrial electrolysis systems.
Key Features of IrTa Titanium Anode Plate
Excellent Oxygen Evolution Performance
The iridium-tantalum MMO coating provides outstanding catalytic activity for oxygen evolution reactions.
Superior Corrosion Resistance
The titanium substrate and MMO coating system offer excellent resistance to acidic and highly oxidative environments.
Low Oxygen Evolution Overpotential
The optimized coating structure reduces electrolysis voltage and energy consumption.
High Mechanical Strength
The titanium plate structure provides excellent dimensional stability and structural strength.
Long Operational Lifetime
IrTa Titanium Anode Plate maintains stable electrochemical performance during long-term industrial operation.
High Current Density Capability
Suitable for demanding industrial electrolysis systems operating at high current densities.
Customizable Plate Structure
Available in different:
- Plate thicknesses
- Dimensions
- Coating loadings
- Welding terminal structures
- Surface designs
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IrTa Titanium Anode Plate |
| Substrate Material | Titanium Grade 1 / Grade 2 |
| Coating Type | Iridium Oxide + Tantalum Oxide |
| Plate Thickness | Customized |
| Coating Loading | 8–25 g/m² |
| Current Density | Up to 15000 A/m² |
| Operating Temperature | ≤ 85°C |
| Electrolyte Type | Acidic Electrolyte |
| Application | Oxygen Evolution / Electrolysis |
| Processing Service | CNC / Welding / Cutting |
| Custom Manufacturing | Available |
Why Choose IrTa Titanium Anode Plate
In industrial electrolysis systems, electrode stability and corrosion resistance directly affect system efficiency and operating costs. Conventional electrode materials often suffer from corrosion, unstable catalytic performance, and short operational lifetime under aggressive electrochemical conditions.
IrTa Titanium Anode Plate is specifically engineered to provide reliable long-term performance in acidic and oxygen evolution environments.
The iridium oxide component provides excellent catalytic activity and low oxygen evolution overpotential, which helps reduce operating voltage and improve electrolysis efficiency. Meanwhile, tantalum oxide significantly improves coating stability and corrosion resistance.
Compared with conventional electrodes, IrTa Titanium Anode Plate offers:
- Lower operating voltage
- Higher electrochemical efficiency
- Longer service life
- Stable electrode dimensions
- Superior corrosion resistance
The solid titanium plate structure also provides excellent mechanical strength, making the electrode suitable for large-scale industrial electrolysis systems.
These advantages make IrTa Titanium Anode Plate highly suitable for oxygen evolution systems, PEM electrolysis, electrochemical oxidation, wastewater treatment, and advanced industrial electrochemical applications.
Applications of IrTa Titanium Anode Plate
PEM Water Electrolysis
Used in hydrogen production systems requiring stable oxygen evolution performance.
Electrochemical Oxidation
Suitable for industrial wastewater treatment and advanced oxidation systems.
Industrial Electrolysis
Applied in acidic electrolysis and oxygen generation systems.
Electrochemical Disinfection
Used in industrial disinfection and sterilization systems.
Water Treatment Systems
Suitable for advanced industrial water treatment and environmental protection systems.
Manufacturing Process
The manufacturing process of IrTa Titanium Anode Plate includes several precision production procedures.
Step 1 — Titanium Plate Preparation
The titanium substrate is sandblasted, acid cleaned, and chemically treated to improve coating adhesion.
Step 2 — Precision Machining
Titanium plates are machined according to customer specifications and engineering drawings.
Step 3 — MMO Coating Application
Iridium and tantalum precursor solutions are uniformly applied to the titanium plate surface.
Step 4 — Thermal Decomposition Treatment
The coated titanium plate undergoes heat treatment to form a stable mixed metal oxide catalytic layer.
Step 5 — Final Inspection
Each finished IrTa Titanium Anode Plate product is tested for:
- Coating adhesion
- Surface quality
- Welding quality
- Dimension accuracy
- Electrochemical performance
Performance Comparison
| Electrode Type | Corrosion Resistance | Oxygen Evolution Efficiency | Lifetime |
|—|—|—|
| Graphite Electrode | Poor | Medium | Short |
| Stainless Steel Electrode | Poor | Low | Short |
| Lead Alloy Electrode | Medium | Medium | Medium |
| IrTa Titanium Anode Plate | Excellent | Excellent | Long |
Available Customization
We support complete customization for IrTa Titanium Anode Plate.
Available services include:
- Custom dimensions
- Custom thickness
- Custom coating loading
- Special welding terminals
- CNC machining
- Waterjet cutting
- Laser cutting
- OEM manufacturing
Customers can provide drawings or technical specifications for production.
Quality Control
All IrTa Titanium Anode Plate products are manufactured under strict quality control procedures.
Inspection items include:
- Coating thickness inspection
- Adhesion testing
- Surface inspection
- Welding inspection
- Electrochemical testing
- Dimension measurement
This ensures stable product quality and reliable long-term industrial performance.
Packaging & Shipping
Products are packed using industrial export packaging standards:
- Foam protection
- Waterproof packaging
- Wooden cases
- Export cartons
Worldwide shipping is available.
